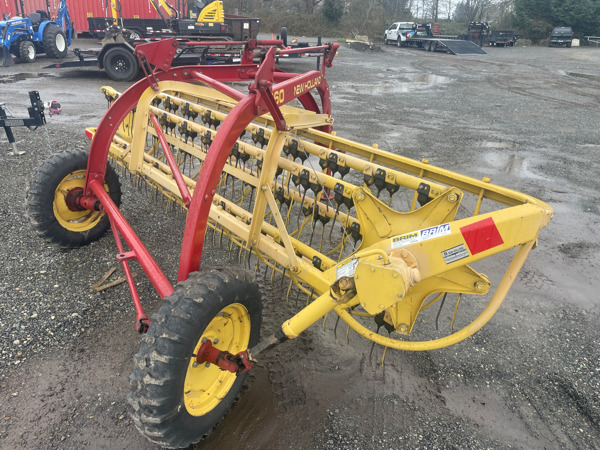

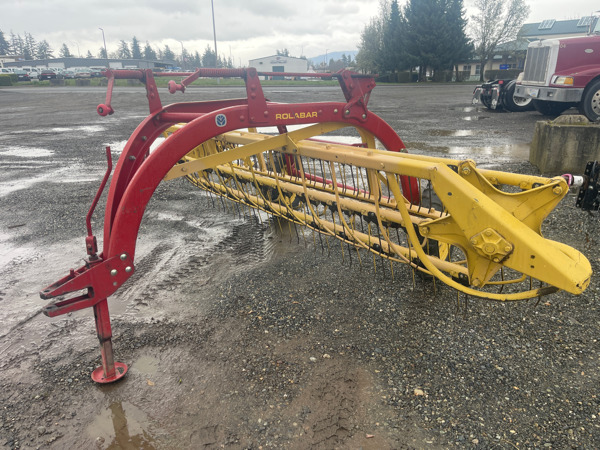

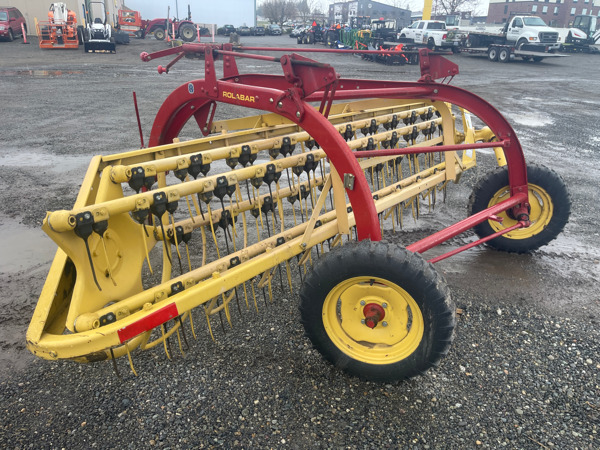

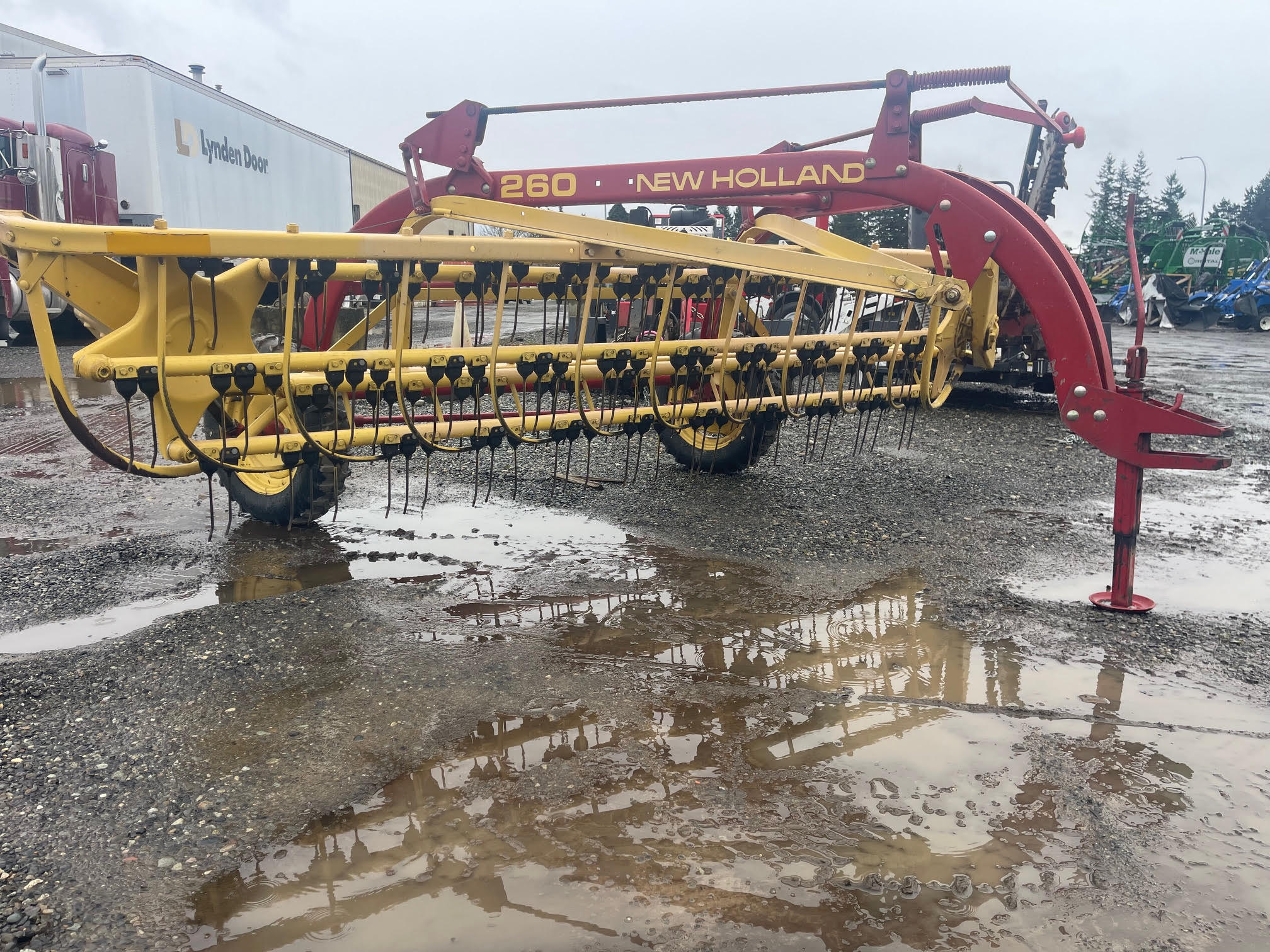

1998 New Holland Rolabar 260 Rake

This heavy-duty, right-hand delivery rake is the ideal solution for large-scale hay operations looking to combine windrows or create a “V” setup when paired with a left-hand 258 rake. Built with an extra-heavy high-carbon steel frame and 155 rubber-mounted tines, it is designed for durability and clean raking in heavy or damp crops.

Key Technical Specifications

Raking Width 9′ 6″ (2.9m)

Overall Width 11′ (3.35m)

Drive Type Ground Drive (Tire-driven)

DeliveryRight-Hand Side (Harder to find than standard LH)

Tine Bars 5 Extra-heavy high carbon bars

Tine Count 100 or 155 (Triple-tine configuration)

Tine Type Rubber-mounted “Dyna-Tines”

Main Frame 4″ (102mm) Channel steel with tubular cross-bracing

Transport Speed Up to 20 mph (32 km/h)

Approx. Weight ~885 lbs (Less tires)
