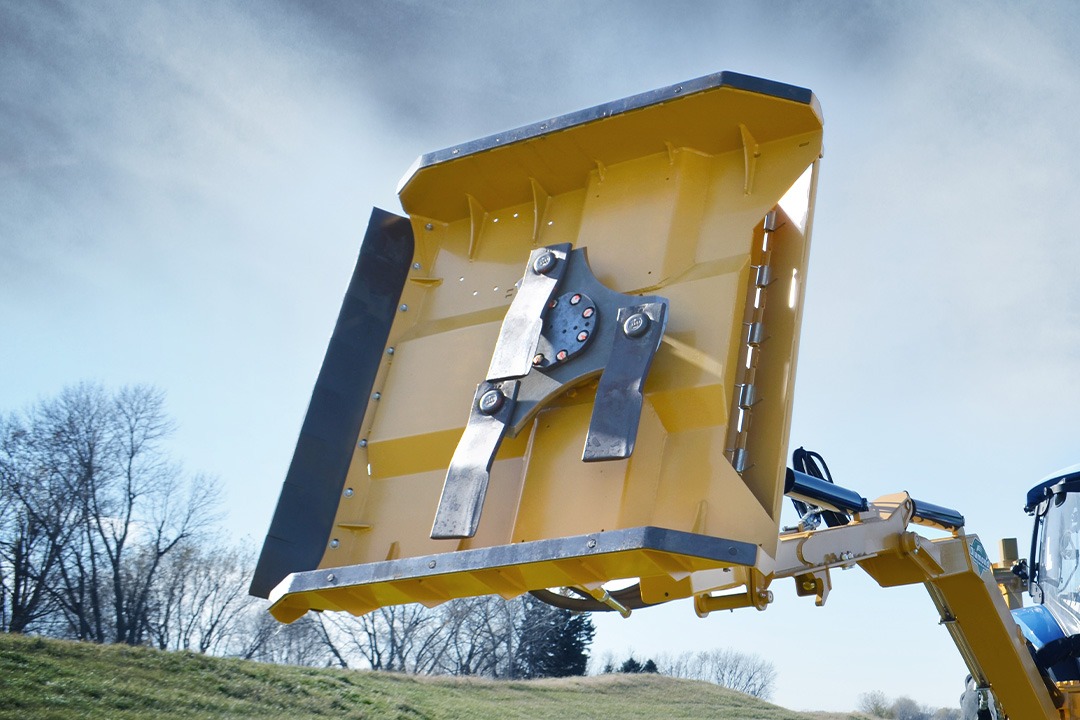

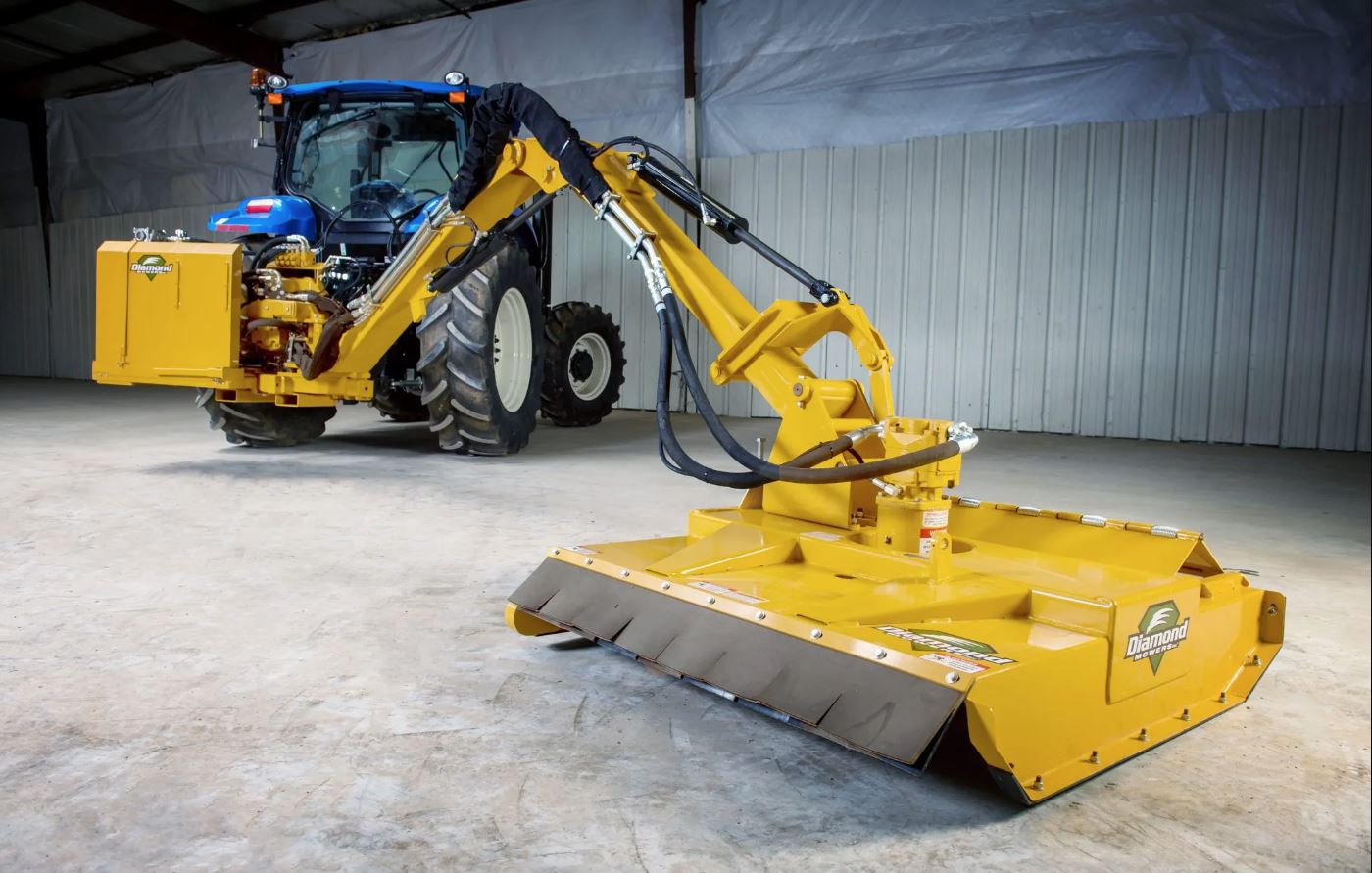

Diamond Mowers 3-PT Boom Rotary Head

Features may include:

• Cuts brush and trees up to 4″ in diameter

• Available on 14′ and 16′ booms

• Diamond proprietary Tri-Hex mulching disc provides

• greater inertia in tough conditions – 5YR LIMITED WARRANTY

4-FUNCTION PROPORTIONAL JOYSTICK

• Improved Ergonomics

• Improved ergonomics make operation more comfortable and enjoyable

• Fast

• Increased mowing speed in tough terrain because of shorter operator reaction time

• Easy to Use

• Ease of use decreases operator fatigue

• Easy Installation

• Installation is quick and easy

3-PT Boom Rotary Head 40″ Head, 14′ Boom

PTO: PTO Power, Rated Engine Speed 540 RPM | 60 hp

Chassis: Hitch/Type Cat II or III

Dimensions: Dimensions Heads: 40″ Rotary or 42″ Flail

Weights: Weight Min. Tractor: 4,500 lb | w/ Rotary Head: 2,440 lb. | w/ Flail Head: 2,493 lb.

3-PT Boom Rotary Head 40″ Head, 16′ Boom

PTO: PTO Power, Rated Engine Speed 540 RPM | 60 hp

Chassis: Hitch/Type Cat II or III

Dimensions: Dimensions Heads: 40″ Rotary or 42″ Flail

Weights: Weight Min. Tractor: 6,000 lb | w/ Rotary Head: 2,506 lb. | w/ Flail Head: 2,589 lb.

3-PT Boom Rotary Head 50″ Head, 17′ Boom

PTO: PTO Power, Rated Engine Speed 1,000 RPM | 90 hp

Chassis: Hitch/Type Cat II or III

Dimensions: Dimensions Heads: 50″ Rotary or 44″ Flail

Weights: Weight Min. Tractor: 10,500 lb | w/ Rotary Head: 3,095 lb. | w/ Flail Head: 3,314 lb

3-PT Boom Rotary Head 50″ Head, 20′ Boom

PTO: PTO Power, Rated Engine Speed 1,000 RPM | 90 hp

Chassis: Hitch/Type Cat II or III

Dimensions: Dimensions Heads: 50″ Rotary or 44″ Flail

Weights: Weight Min. Tractor: 11,500 lb | w/ Rotary Head: 3,145 lb. | w/ Flail Head: 3,260 lb.
