JCB 542-70 AGRI Telehandler

JCB 542-70 AGRI Telehandler

JCB 542-70 AGRI Telehandler

Commercial Loading Power | Unrivaled Cycle Times & Visibility

Engineered for high-volume agricultural operations, commercial livestock facilities, and demanding material handling tasks, the JCB 542-70 AGRI sets the standard for telescopic handler performance. Delivering class-leading lift capacity, exceptional hydraulic speed, and operator-centric cab ergonomics, the 542-70 turns heavy loading, bale stacking, and bulk material rehandling into efficient, low-effort work.

Key Features & Highlights

  • Robust JCB EcoMAX Engine Power: Equipped with a high-torque JCB EcoMAX diesel engine, delivering responsive low-end power and excellent fuel efficiency during heavy pusher or loader passes.

  • Exceptional Lift Capacity & Reach: Boasts a maximum lift capacity of 9,259 lbs (4,200 kg) and a maximum lift height of 23 ft (7.0 m), allowing effortless handling of double-stacked bales, grain buckets, and heavy palletized loads.

  • Smart Hydraulics System: Regenerative hydraulics harness gravitational forces during boom lowering and retracting to dramatically lower cycle times and reduce total fuel consumption.

  • DualTech VT Transmission: Combines the low-speed precision control of hydrostatic drive with the high-speed efficiency of direct mechanical powershift—giving you optimal performance both in the yard and on the road.

  • CommandPlus Cab: Features a spacious, quiet, climate-controlled working environment with a curved front-to-roof windscreen for unobstructed upward visibility, intuitive seat-mounted single-lever joystick controls, and air-suspension seating.

  • Heavy-Duty Axles & 4WD: Permanent 4WD with selectable steering modes (2-wheel, 4-wheel, and crab steer) ensures unmatched maneuverability in tight barns, muddy yards, and uneven field terrain.

Ideal Applications

  • Grain & Fertilizer Handling: Fast hydraulic cycle times make scooping, lifting, and loading high-capacity trailers swift and effortless.

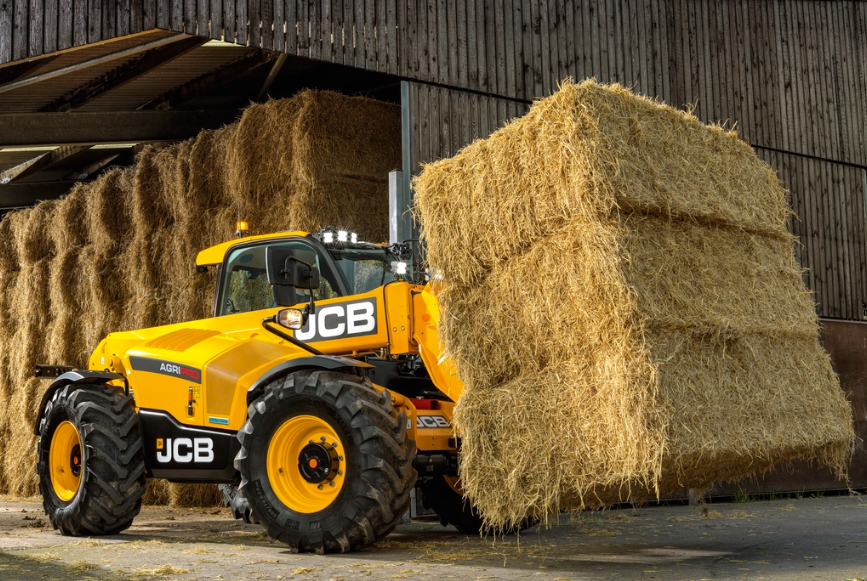

  • Bale Stacking & Transport: Reach higher and stack further into barns or onto flatbed trailers with 23 feet of vertical reach.

  • Livestock & Silage Management: Maneuver easily through narrow farm alleys and soft yard surfaces with crab steer and low-speed hydrostatic precision.

Quick Specifications

Max Lift Capacity 9,259 lbs (4,200 kg)

Max Lift Height 23 ft (7.0 m)

Max Forward Reach 12 ft 2 in (3.7 m)

Engine JCB EcoMAX Diesel

Transmission DualTech VT (Hydrostatic / Powershift Hybrid)

Steering Modes 2WD, 4WD, and Crab Steer

Hydraulic Flow Up to 37–42 GPM (High-flow auxiliary option)
