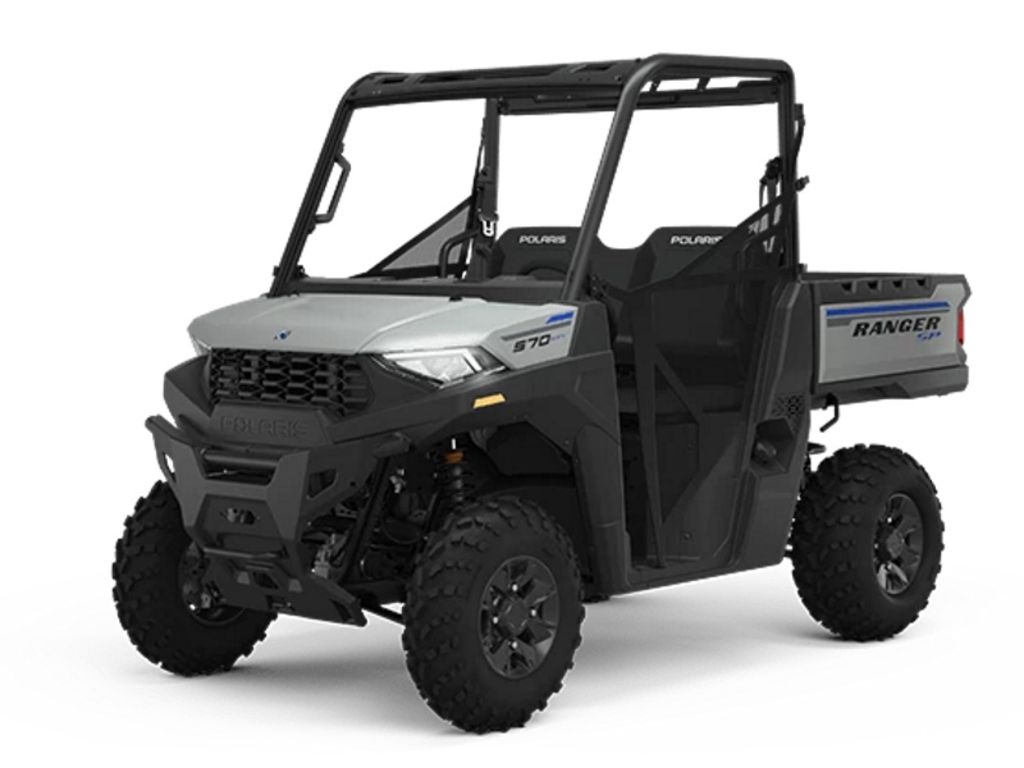

Polaris Ranger SP 570 Premium

Features may include:

• GREAT FOR WORK

The Prostar 570 engine packs a class-leading 44hp, making it easier to confidently haul heavy loads. The all-new spacious cargo box offers class-leading volume to efficiently transport more tools or supplies and a new single-handle tailgate allows for quick and easy access to dump mulch, logs and other cargo from the box. True On-Demand All-Wheel Drive delivers instant traction in rocky, wet and muddy terrain.

• FUN TO RIDE

The new RANGER SP 570 is easy to handle, nimble around corners, and smooth-riding with best-in-class suspension travel and ground clearance. The spacious interior offers plenty of leg room, ample storage for all your gear, and available seating for 4 so friends and family can ride in comfort. Available LED headlights deliver enhanced lighting for tackling low-light tasks and trails.

• PERFECT FIT

The RANGER SP 570 is the right size, at the right price with the right features. It’s compact 56” width makes it easy to ride on tight trails and seamless to transport. Tighter turning radius makes navigating tight corners a breeze. Customize for your work or play needs with a wide selection of accessory options.

Includes

• 44 HP ProStar 570 Engine

• 1,500 lb Towing Capacity

• 500 lb Gas-Assist Dump Box

• 11″ Ground Clearance

• LED Headlights

• 9″ Front / 10″ Rear Suspension Travel

• 12.7′ Turning Radius

• Electronic Power Steering (EPS)

• Full-Body Skid Plate

• Full-Coverage Front Bumper

• All-New Mudguards

ENGINE & DRIVETRAIN

Cooling: Liquid

Cylinders Displacement: 567cc

Drive System Type: On-Demand True AWD/2WD/VersaTrac Turf Mode

Engine Braking System (EBS): Not Equipped

Engine Type: 4-Stroke Single Cylinder DOHC

Fuel System/Battery: Electronic Fuel Injection

Horsepower: 44 HP

Transmission/Final Drive: Automatic PVT H/L/N/R/P; Shaft

DIMENSIONS

Bed Box Dimensions (L x W x H): 33.3 x 48.7 x 12.3 in

Box Capacity: 500 lb (226.8 kg)

Estimated Dry Weight: 1,550 lbs (703 kg)

Fuel Capacity: 9.5 gal (35.9 L)

Ground Clearance: 11 in (27.9 cm)

GVW: 2,700 lbs

Hitch Towing Rating: 1,500 lb (680 kg)

Hitch Type: Standard 2 in (5 cm) Receiver

Overall Vehicle Size (L x W x H): 144 x 56 x 74 in. (365.8 x 142.2 x 188 cm)

Payload Capacity: 1,100 lb (499 kg)

Person Capacity: 4

Wheelbase: 105 in (266.7 cm)

BRAKES

Front/Rear Brakes: 4-Wheel Hydraulic Disc

Parking Brake: Park In-Transmission

ADDITIONAL SPECIFICATIONS

Adjustable Driver Seat: Not Equipped

Cargo System: Lock & Ride®

Color / Graphics: Ghost Gray

Electronic Power Steering: Standard

Instrumentation: 4″ LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet

Lighting: High/Low Beam LED Headlights LED Taillamps

Other Standard Features: Gas Assist Dump Box, Single Latch Tailgate, Rear-mounted Fiberglass Insulated Exhaust System, Standard In-dash SAE Charge Port, 575 CCA Battery, 660W Charging System (Stator), 48.4 Gal. Onboard Storage with Enclosed Dash Bins and Integrated Cell-phone Holder, Sealed Suspension Bushings and Wheel Bearings, Full Coverage Steel Front Bumper with Integrated Winch and Plow Mounts, Full Coverage Skid Plate, Premium Body Panels, Premium Cut & Sew Seats, Polaris Pulse Electrical System (3 position), USB Charging Port, Front Stabilizer Bar, Rear Wheel Liners

RIDE COMMAND+: Available

Tilt Steering: Standard

TIRES / WHEELS

Front Tires: 25 x 8-12; Carlisle 489

Rear Tires: 25 x 10-12; Carlisle 489

Tire Ply Rating: 4 Ply Rated

Wheels: 12″ Black Aluminum

SUSPENSION

Front Suspension: MacPherson Strut 9 in (22.9 cm) Travel

Rear Suspension: Dual A-Arm, IRS 10 in. (25.4 cm) Travel

Turning Radius: 16.3 ft (497.8 cm)
