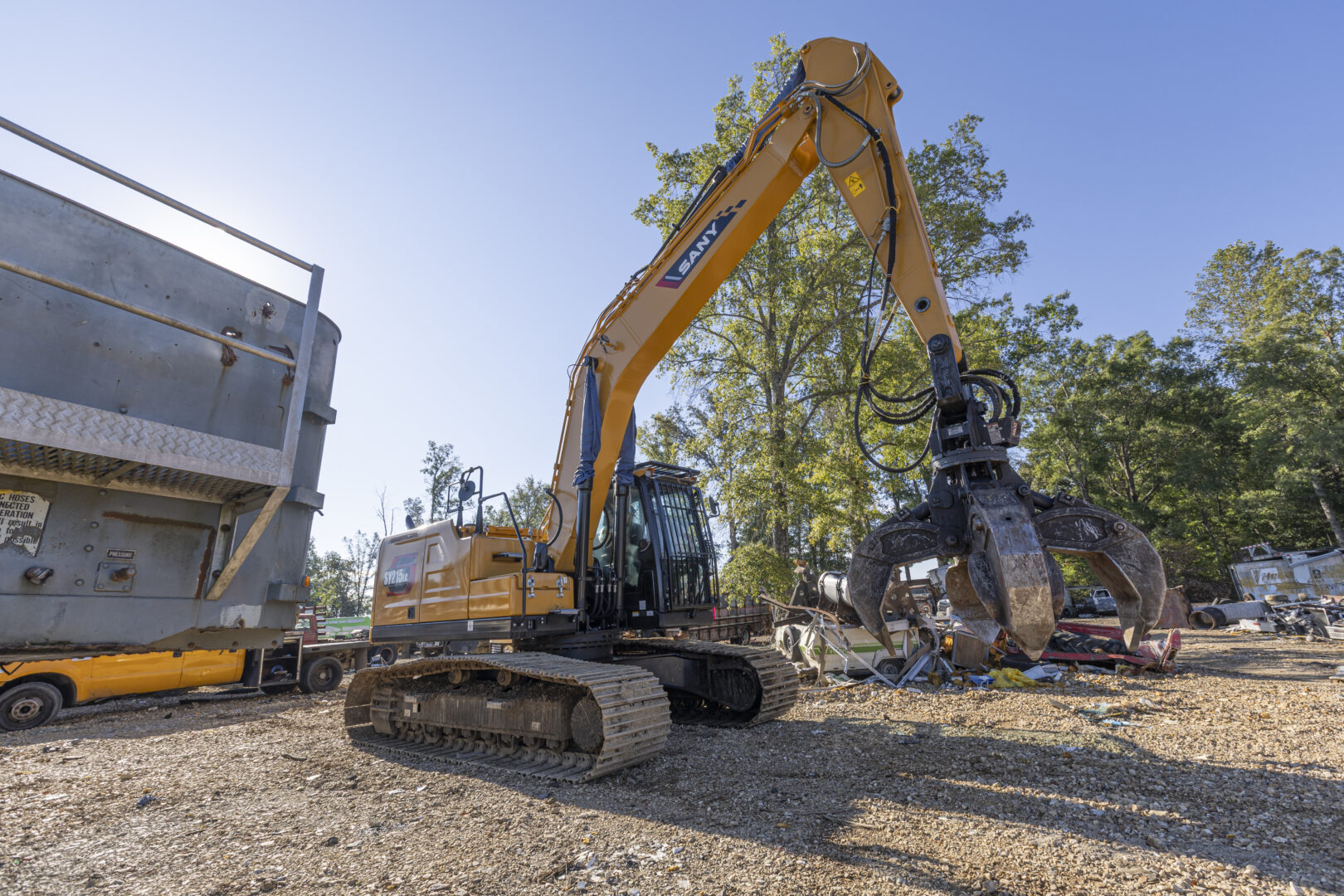

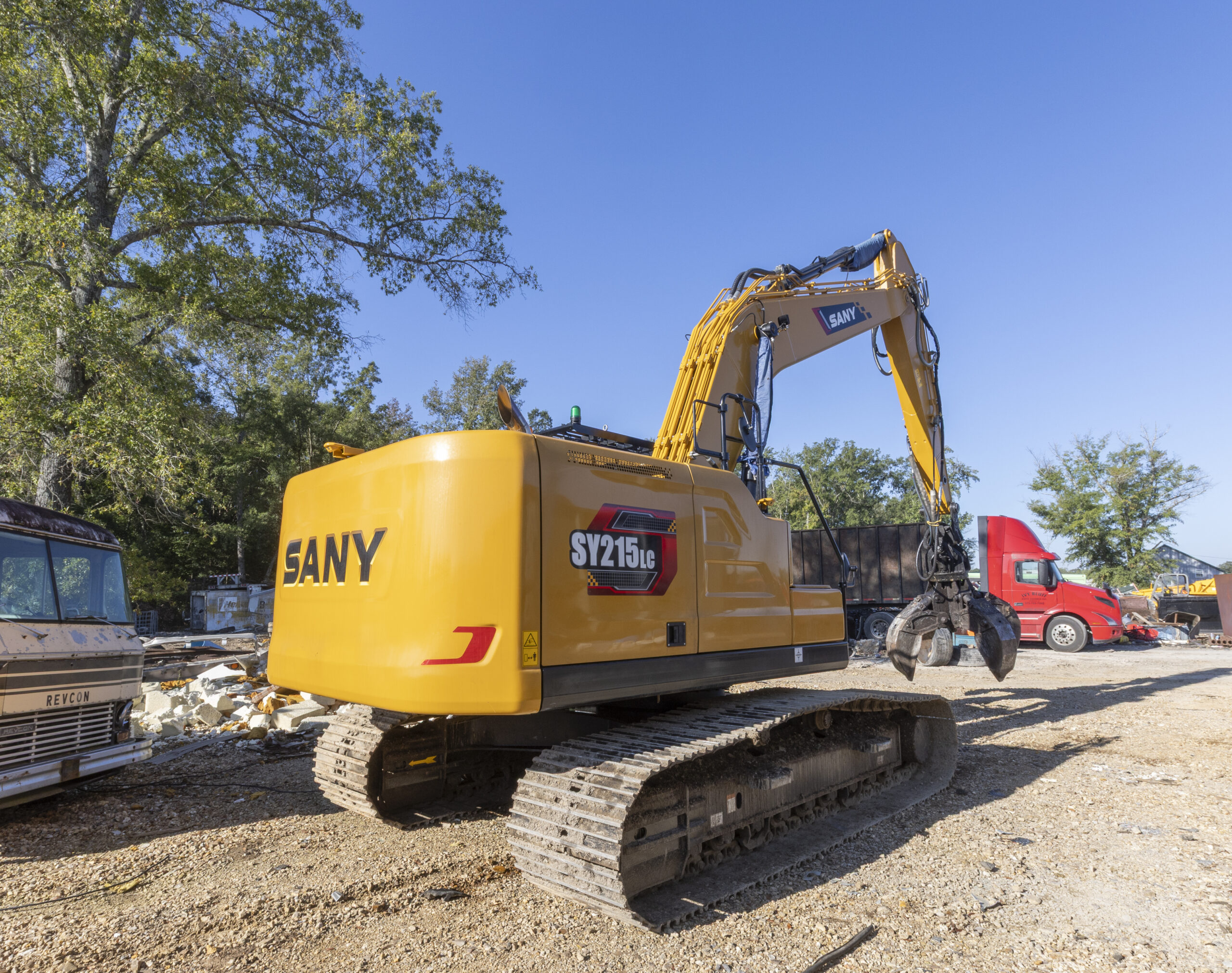

The SANY SY215C is a high-performance, 22-ton class hydraulic excavator designed to tackle demanding earthmoving, site development, and commercial utility projects. Powered by a robust Cummins QSB6.7 Tier 4 Final turbo diesel engine delivering 163.6 HP, the SY215C provides powerful breakout force, exceptional fuel efficiency, and long-term reliability.

Built with a conventional tail swing and a fixed boom configuration, this excavator delivers optimal leverage and stability when digging at maximum depths or lifting heavy loads. Equipped with a 36″ heavy-duty bucket, a hydraulic thumb, and a Hydraulic Quick Coupler (HQC), the machine provides seamless attachment swapping and precise material handling. Inside the sealed cab, an air-heated suspension seat and integrated rear camera keep operators safe, comfortable, and productive through all seasons and weather conditions.

SANY SY215C Key Specifications & Features:

Engine & Performance

• Engine Make/Model: Cummins QSB6.7 Tier 4 Final Turbo Diesel

• Gross Power: 163.6 HP @ 2,000 RPM

• Displacement: 6.7 L (408.9 cu in)

• Operating Weight: ~51,919 lbs (23,550 kg)

Working Capabilities

• Max Dig Depth: 21′ 8″

• Max Reach at Ground Level: 33′ 10″

• Max Dump Height: 21′ 11″

• Bucket Digging Force: 28,551 lbf

Equipment & Hydraulics

• Bucket: 36″ Heavy-Duty Bucket

• Attachments: Hydraulic Quick Coupler (HQC) and Hydraulic Thumb

• Boom Configuration: Fixed Boom with Conventional Swing

• Under-Carriage: Heavy-duty Steel Tracks for maximum traction and stability on harsh terrain

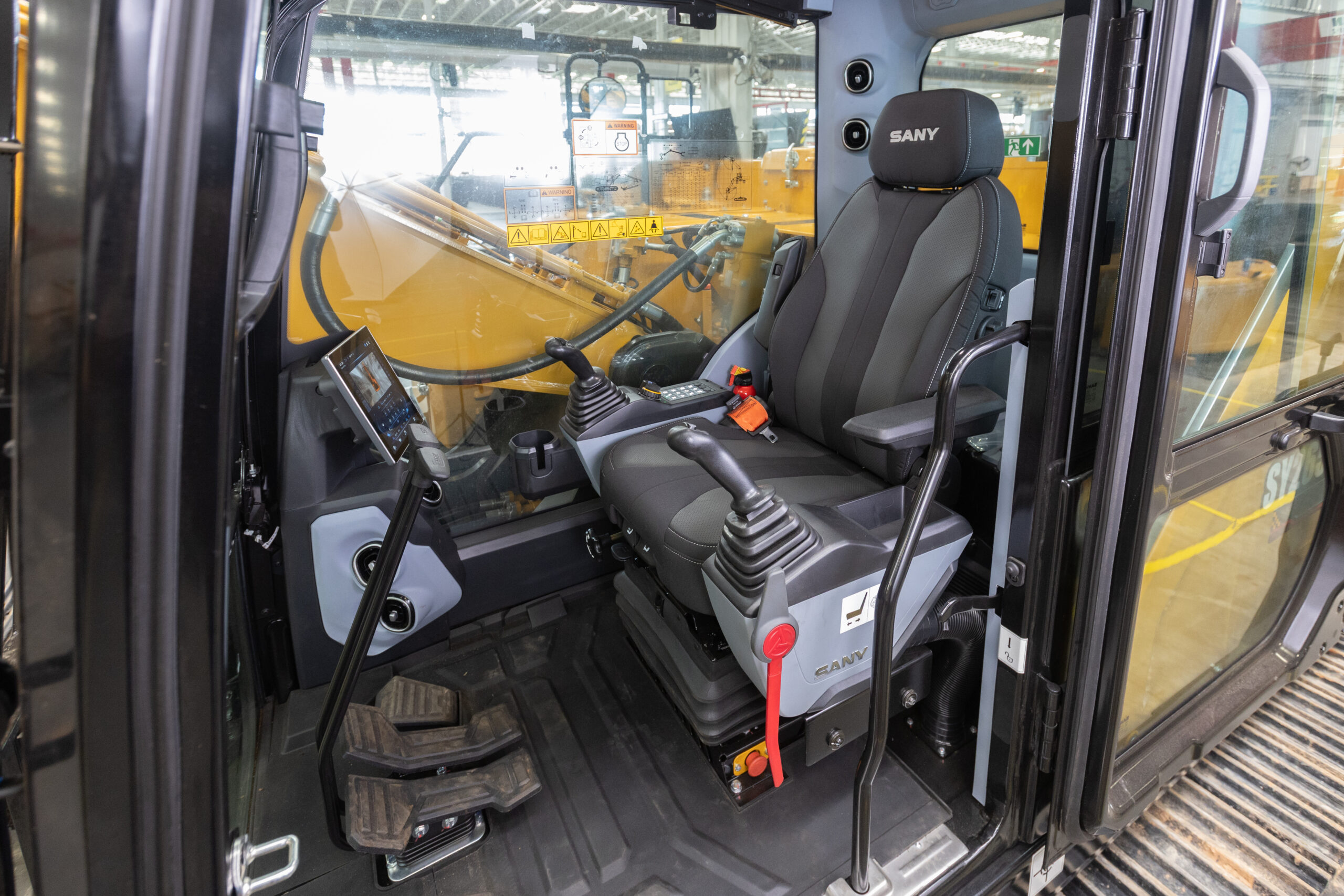

Operator Comfort & Safety

• Cab Environment: Fully enclosed, climate-controlled cab with HVAC

• Seating: Premium Air-Heated Suspension Seat for cold-weather comfort

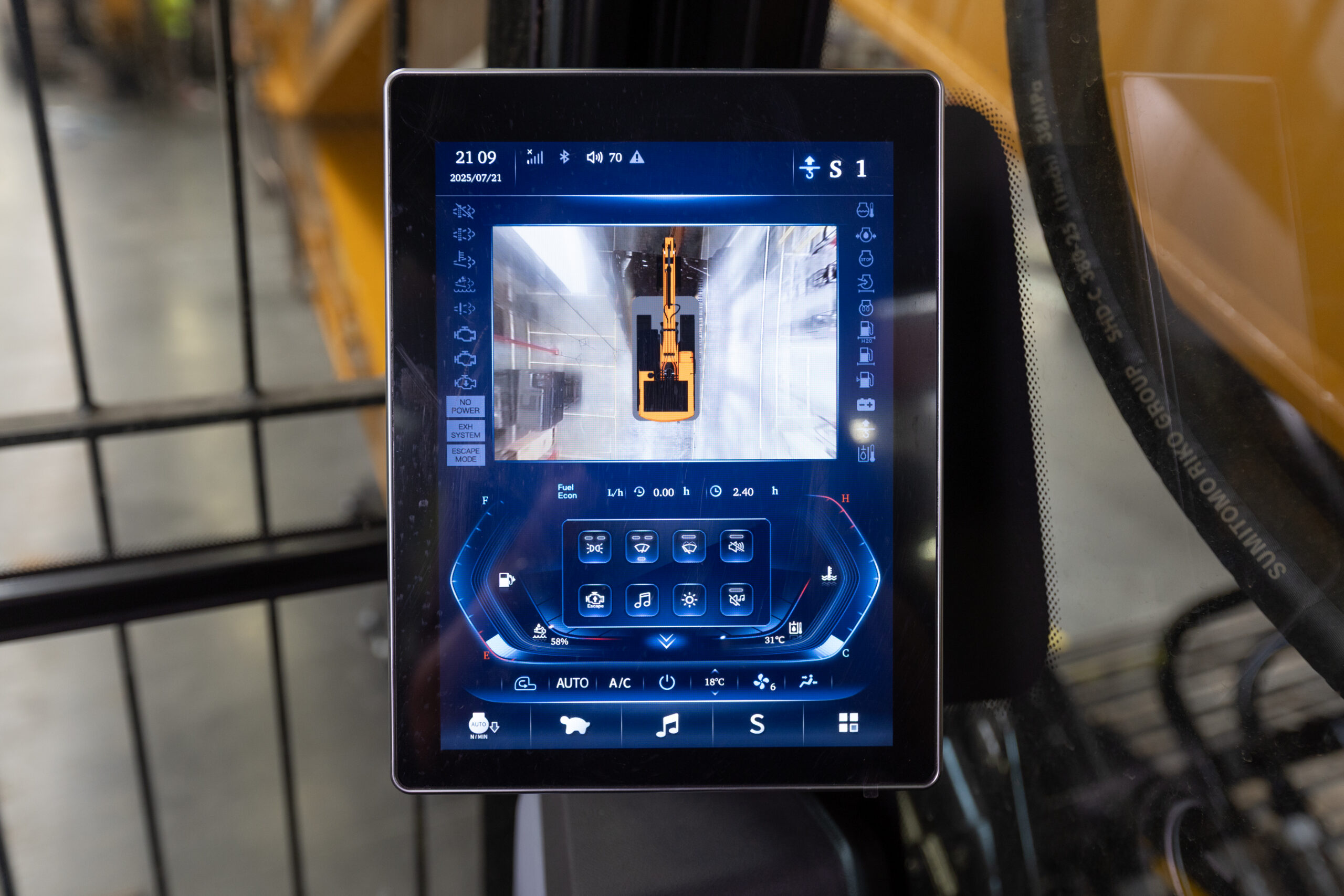

• Visibility & Safety: Integrated Rear-View Camera with multi-function display screen
