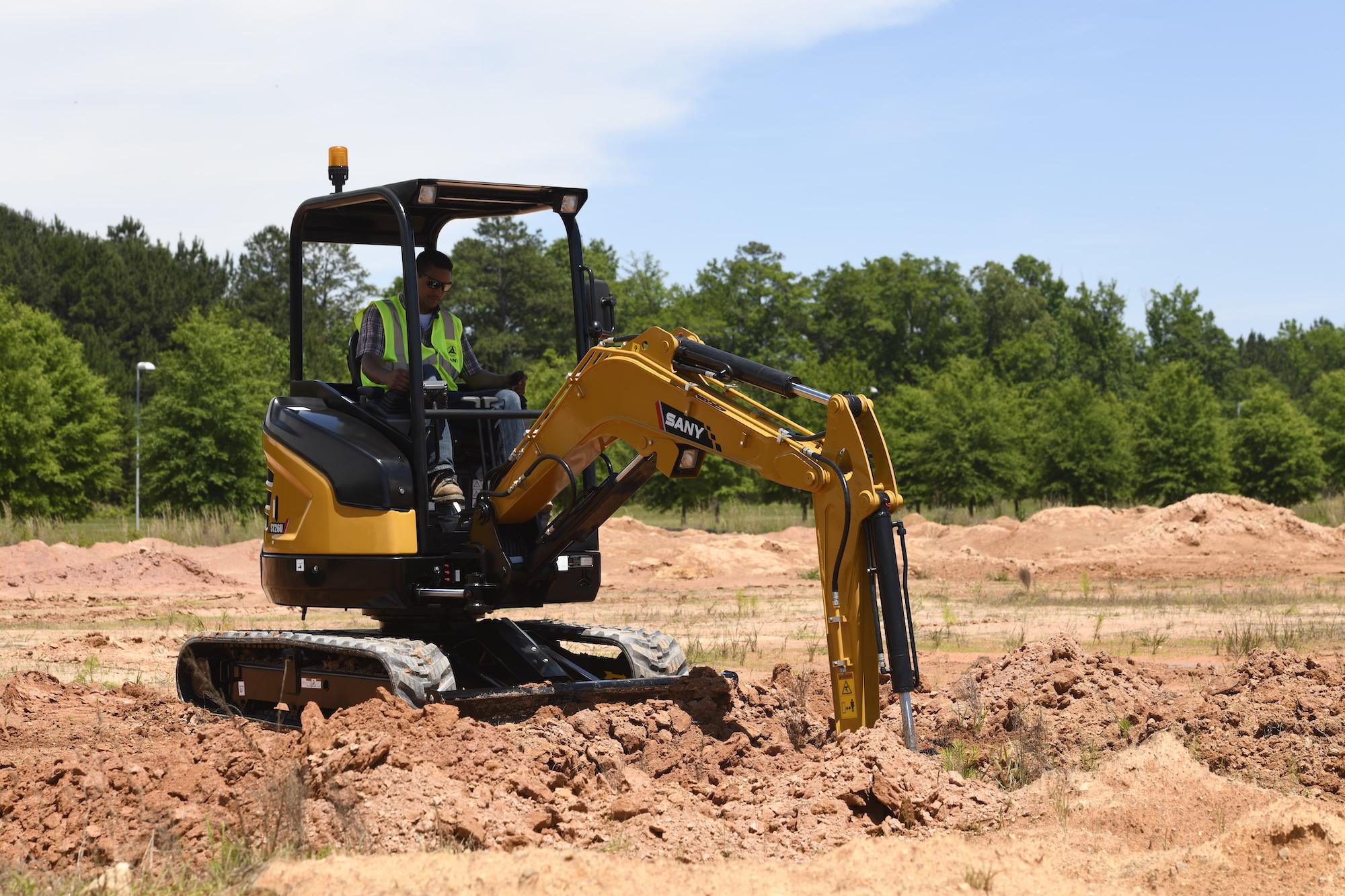

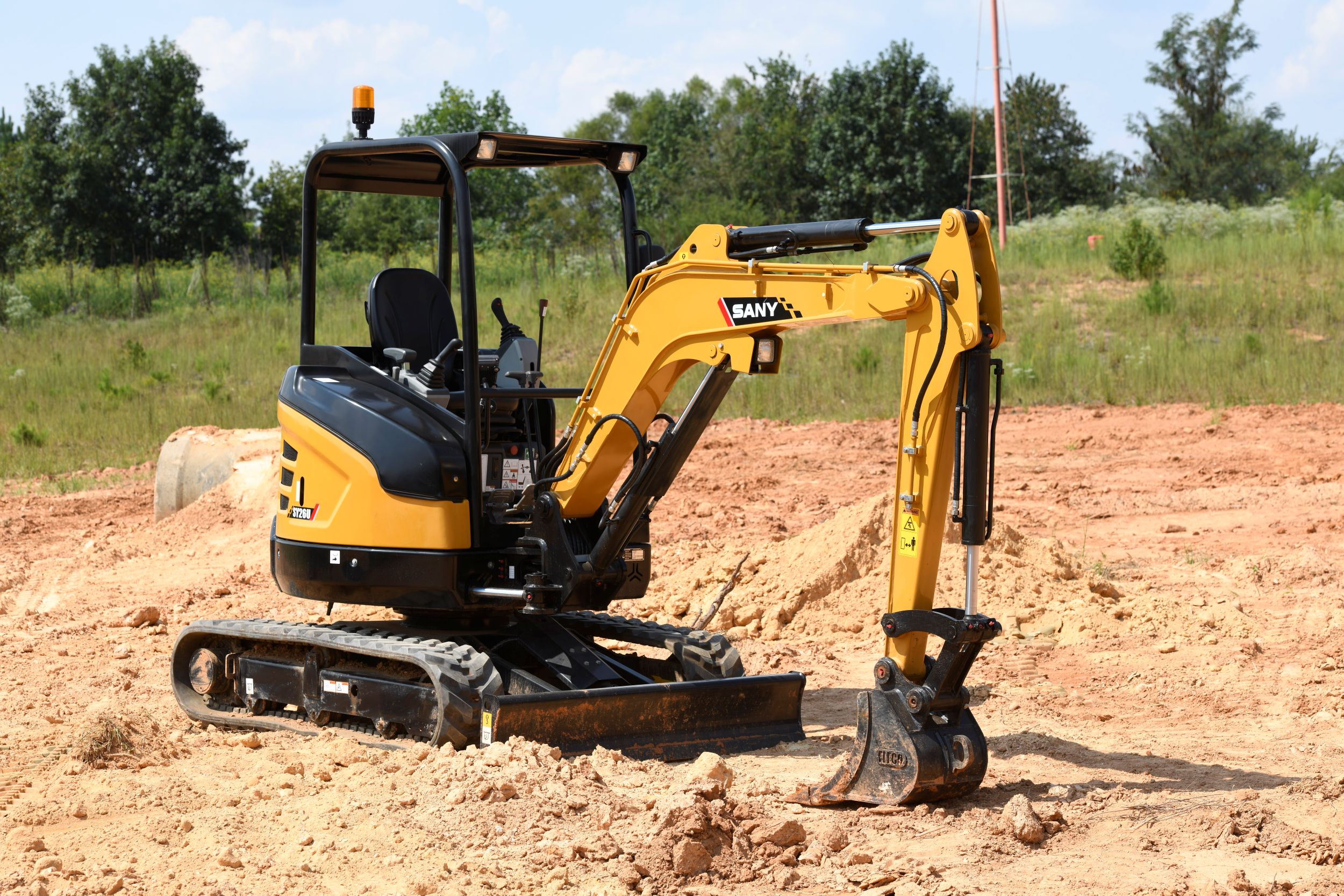

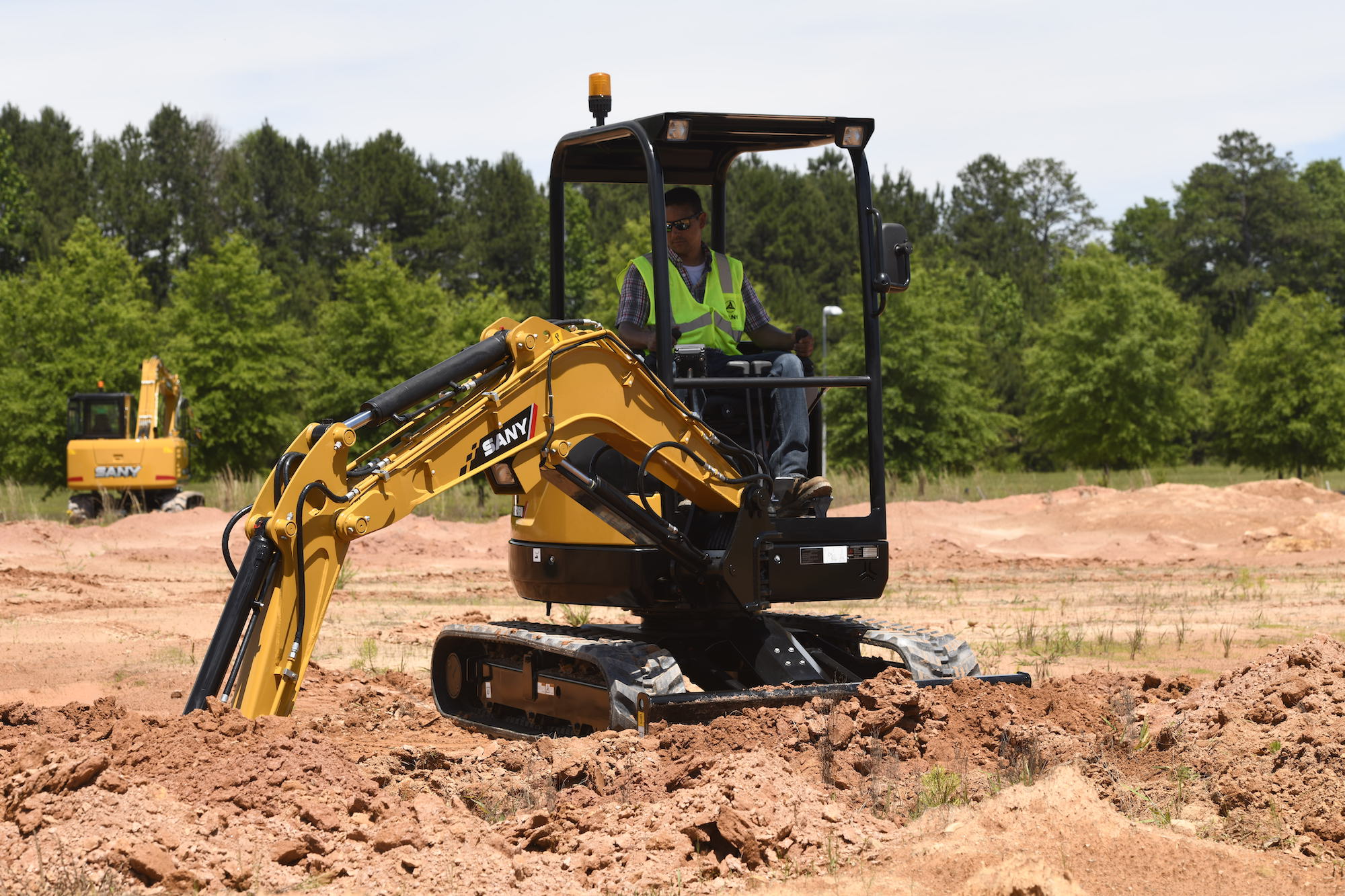

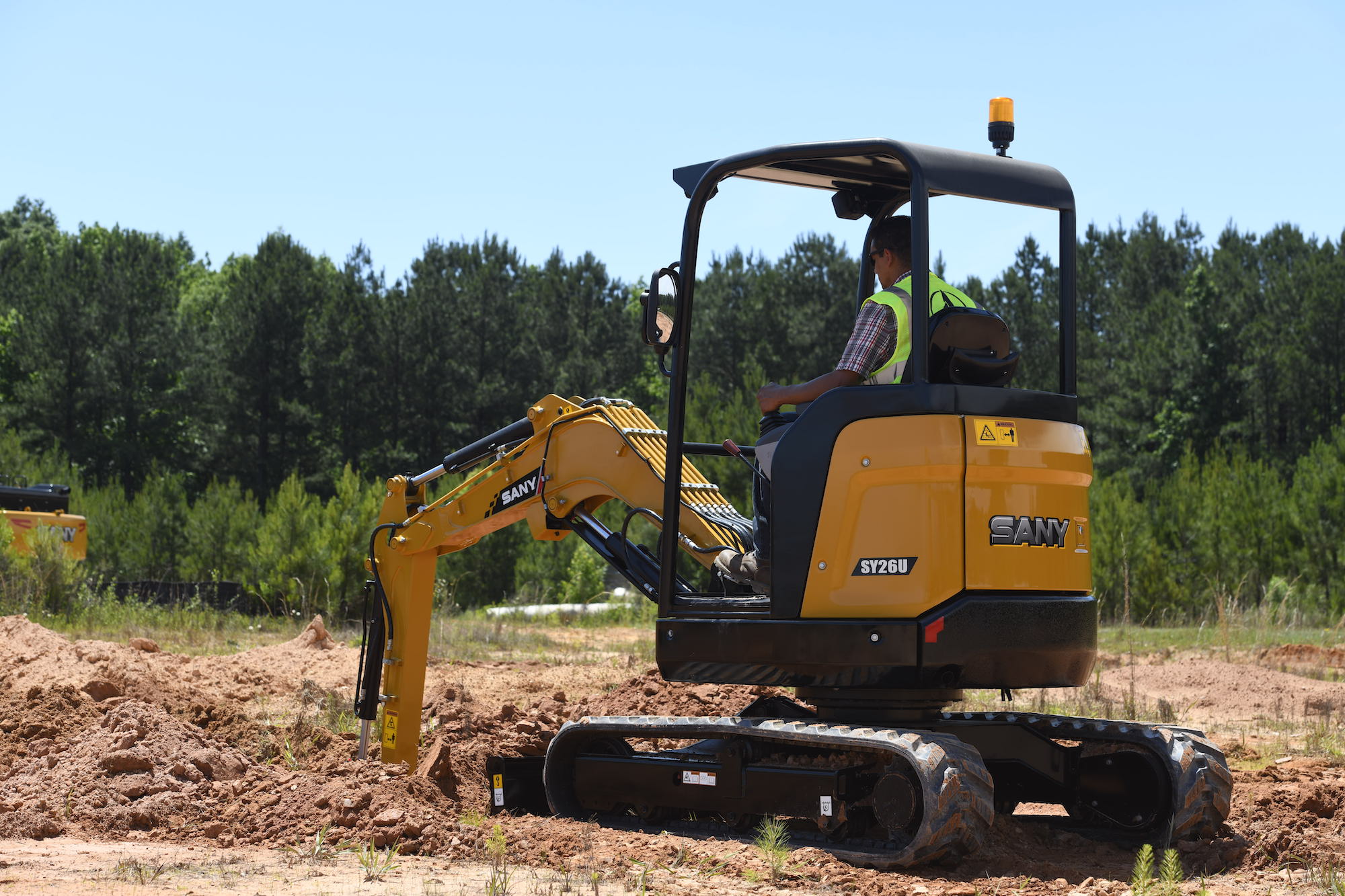

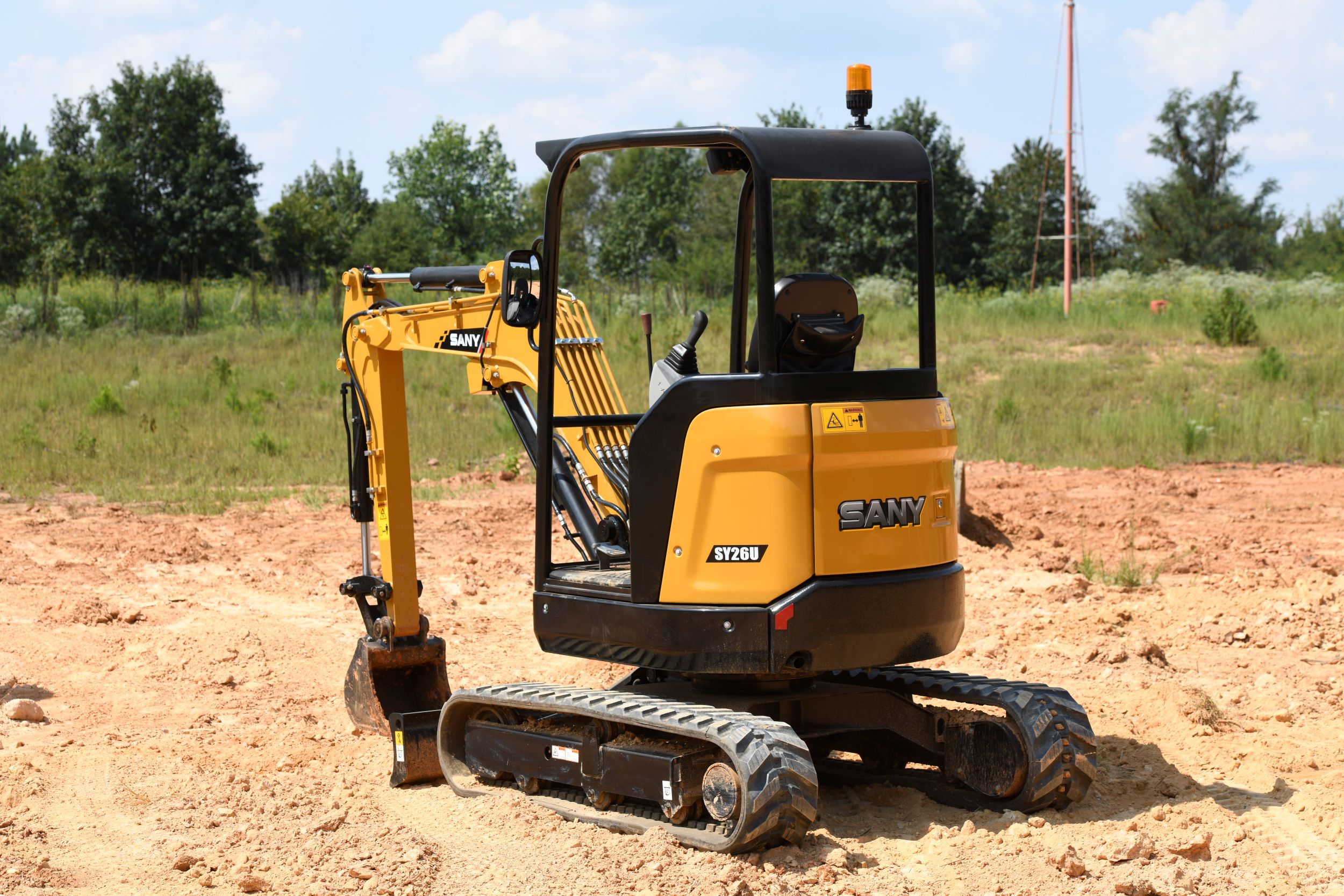

The SANY SY26U Mini Excavator is engineered to tackle tough jobs in tight spaces where conventional excavators can’t operate. Featuring a true zero-tail swing design, the SY26U lets operators swing freely without worrying about rear overhang hitting walls, fences, or surrounding structures. Perfect for urban utility installation, residential landscaping, and confined construction sites, it combines versatile performance with minimal footprint.
Key Highlights & SANY Advantages
-
Industry-Leading 5-Year / 5,000-Hour Warranty: Fully supported by SANY’s standard bumper-to-bumper warranty, protecting your investment and minimizing long-term total cost of ownership.
-
True Zero-Tail Swing Design: Total upper structure rotation remains entirely within the width of the tracks, eliminating the risk of rear impact in tight corridors and adjacent to buildings.
-
Efficient Yanmar Engine: Powered by a clean, reliable Yanmar 3TNV80F diesel engine producing 19.6 HP gross, delivering smooth power and exceptional fuel economy.
-
Load-Sensing Hydraulics: Variable-displacement axial piston pump optimizes hydraulic flow on demand for precise control, excellent multi-functioning capability, and high breakout force.
-
Attachment Ready: Standard secondary auxiliary hydraulics with proportional joystick controls make it fast and easy to hook up breakers, augers, thumbs, and other work tools.
-
Operator Comfort & Serviceability: Spacious, ergonomically designed cab/canopy with high-visibility layout and wide-opening steel access doors for streamlined daily maintenance.
Technical Specifications
Operating Weight 5,997 lbs (2,720 kg)
Horsepower 18.2 HP (Net) / 19.6 HP (Gross)
Max Digging Depth 9′ 3″ (2,820 mm)
Max Digging Reach 15′ 4″ (4,670 mm)
Bucket Breakout Force 5,463 lbf (24.3 kN)
Transport Width 4′ 11″ (1,500 mm)
Auxiliary Hydraulic Flow 18.0 GPM (68 L/min)
