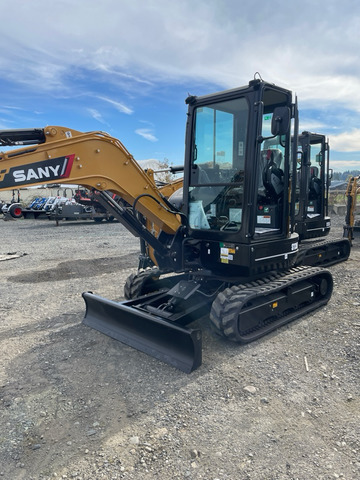

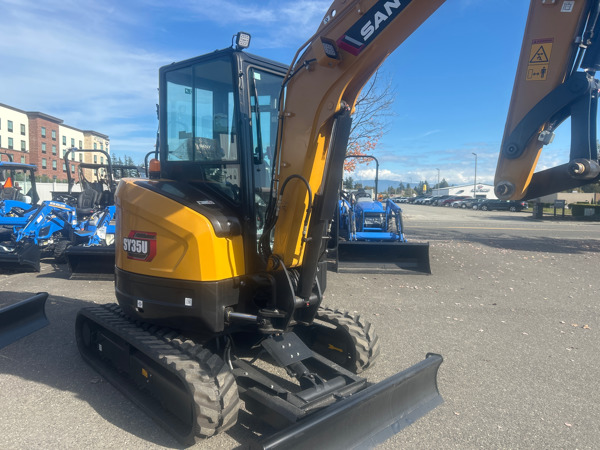

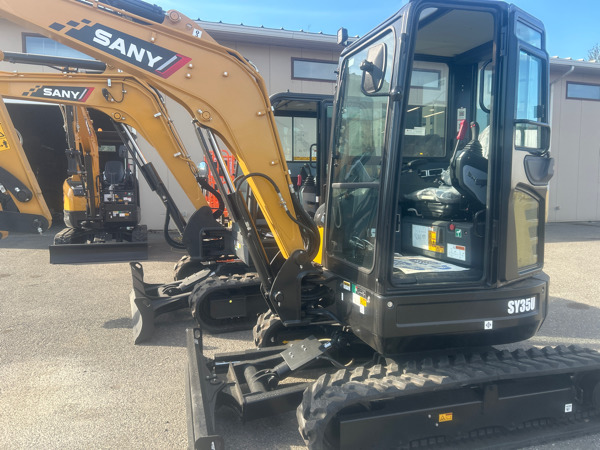

SANY SY35U Excavator Angle Blade w/ Cab

SANY SY35U Excavator Angle Blade w/ Cab

Effortless Tool Changes, All-Weather Comfort, and Precision Angling

The SANY SY35U Mini Excavator equipped with a hydraulic angle blade, enclosed climate-controlled cab, and Hydraulic Quick Coupler (HQC) is built for maximum productivity and ultimate job site efficiency. With the addition of the Hydraulic Quick Coupler, operators can swap buckets and attachments directly from the comfort and safety of the cab, saving valuable time and reducing physical labor throughout the workday.

Key Highlights & SANY Advantages

  • Industry-Leading 5-Year / 5,000-Hour Warranty: Fully supported by SANY’s standard bumper-to-bumper warranty, protecting your investment and maintaining low ownership costs.

  • Hydraulic Quick Coupler (HQC): Change attachments instantly with the touch of a button inside the cab—no manual pin pulling or heavy lifting required.

  • Hydraulic Angle Blade: Angles left and right up to 25 degrees, letting you backfill trenches seamlessly while driving forward to clear sites in fewer passes.

  • Fully Enclosed Climate-Controlled Cab: Factory AC, heat, ergonomic controls, and 360-degree glass coverage deliver top-tier operator comfort in any weather condition.

  • True Zero-Tail Swing Design: Work and swing freely in tight quarters next to walls, buildings, and obstacles without risk of counterweight damage.

  • Powerful & Efficient Yanmar Engine: Powered by a clean, reliable Yanmar 3TNV88F diesel engine delivering 24.4 HP net paired with responsive load-sensing hydraulics.

Technical Specifications

Operating Weight 8,499 lbs (3,855 kg)

Horsepower 24.4 HP (Net) / 24.8 HP (Gross)

Cab & Blade Configuration Enclosed Cab (A/C & Heat) + Hydraulic Angle Blade

Coupler Factory-Integrated Hydraulic Quick Coupler (HQC)

Max Digging Depth 10′ 2″ (3,105 mm)

Max Digging Reach 17′ 1″ (5,215 mm)

Bucket Breakout Force 7,194 lbf (32.0 kN)

Transport Width 5′ 8″ (1,720 mm)

Auxiliary Hydraulic Flow 23.2 GPM (88 L/min)
