SANY SY500H Excavator

SANY SY500H Excavator

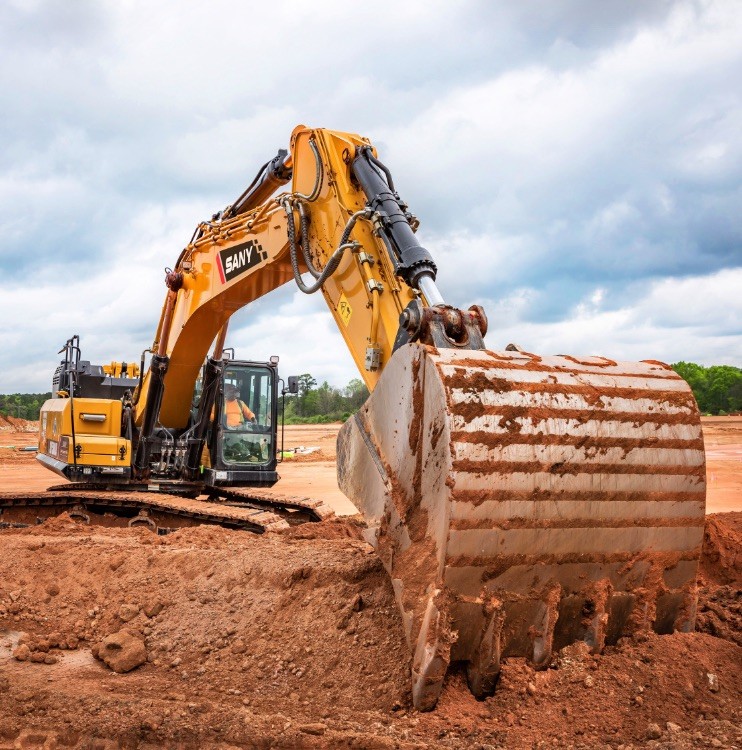

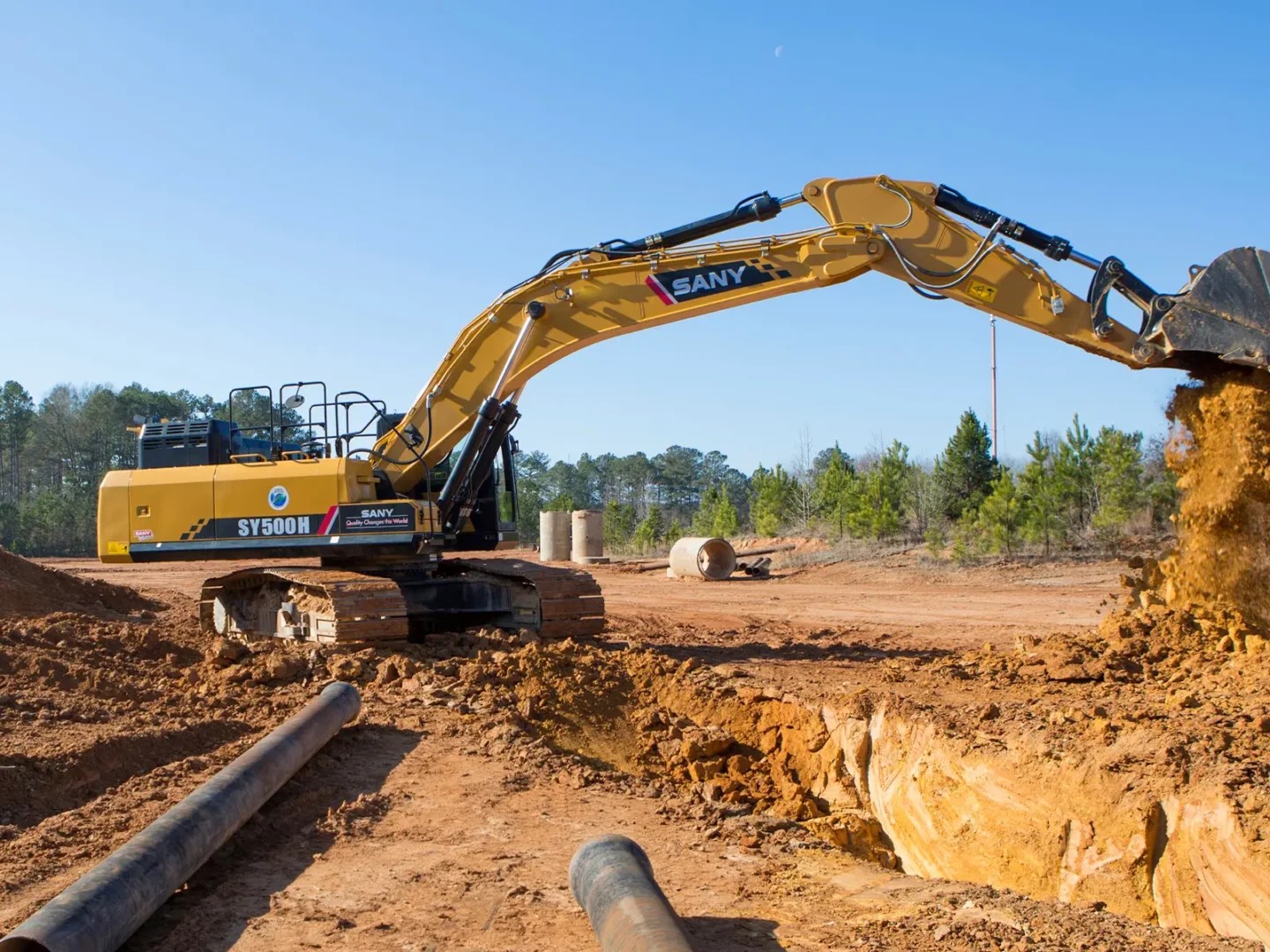

The SANY SY500H is a 50-ton class heavy-duty production excavator built to tackle mass earthmoving, quarrying, mining, and severe infrastructure projects. Driven by a high-torque Cummins X12 Tier 4 Final turbo diesel engine producing 400 HP, this machine delivers high-tonnage output, rapid cycle times, and fuel efficiency. SANY’s DOMCS intelligent hydraulic control system pairs engine output with main pump flow to generate breakout forces capable of ripping through hard rock and compacted materials.

Featuring a conventional tail swing and a fixed boom configuration, the SY500H offers a solid foundation, high lifting capacity, and maximum stability during heavy-duty digs. Outfitted with a high-capacity 72″ bucket, Hydraulic Quick Coupler (HQC) plumbing, and heavy-duty steel tracks, this machine is ready to move large volumes of material right out of the gate. Inside the spacious cab, an air-heated suspension seat and an integrated rear-view camera ensure operator productivity, comfort, and safety through long, demanding shifts.

SANY SY500H Key Specifications & Features:

Engine & Performance

  • Engine Make/Model: Cummins X12 Tier 4 Final Turbo Diesel

  • Gross Power: 400 HP (298 kW) @ 1,800 RPM

  • Displacement: 11.8 L

  • Operating Weight: ~119,000 lbs (54,000 kg) class

Working Capabilities

  • Max Dig Depth: 25′ 3″ (7,700 mm)

  • Max Reach at Ground Level: 38′ 1″ (11,600 mm)

  • Max Dumping Height: 24′ 11″ (7,600 mm)

  • Bucket Digging Force: ~64,500 lbf (287 kN)

Equipment & Hydraulics

  • Bucket: High-Capacity 72″ Heavy-Duty Bucket

  • Attachments & Hydraulics: Hydraulic Quick Coupler (HQC) Plumbed Lines

  • Structure: Heavy-Duty Fixed Boom with Conventional Swing (No Blade configuration)

  • Under-Carriage: Heavy-Duty Reinforced Steel Tracks with full track guards for maximum ground contact and longevity in severe applications

Operator Comfort & Safety

  • Cab Environment: Sound-insulated, sealed cab with high-capacity automatic climate control (Heat/AC)

  • Seating: Premium Air-Heated Suspension Seat designed to reduce operator fatigue during harsh weather conditions

  • Visibility & Safety: Multi-function display paired with an integrated Rear-View Camera for job site awareness
