Used 2010 Vermeer R2800 Rake

Used 2010 Vermeer R2800 Rake

ELECTRIC OVER HYD CONTROLS AND EXTRA PARTS

The 2010 Vermeer R2800 Twin Basket Rake is a high-capacity rake designed for producing consistent, box-shaped windrows. According to the listing you are currently viewing and technical data for this model, here are the key specifications:

General Specifications

  • Model Type: Twin Basket Rake

  • Raking Width: Adjustable from 19 ft to 28 ft

  • Windrow Width: Adjustable from 30 in to 84 in (2.5 ft to 7 ft)

  • Operating Speed: Up to 10 mph

Dimensions & Weight

  • Total Weight: 4,540 lb

  • Tongue Weight: 1,960 lb

  • Transport Width: 8.5 ft (designed for narrow gate openings and roads)

  • Transport Length: 24.8 ft

  • Transport Height: 6.9 ft

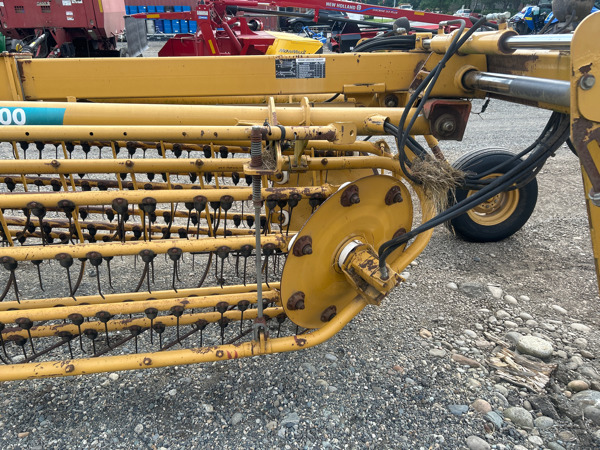

Raking Components

  • Baskets: Two 12-ft baskets

  • Bars per Basket: 7 bars (provides better sweeping action in high-volume crops)

  • Tines: 182 rubber-mounted tines per basket (364 total)

  • Drive System: Fully hydraulic

Tractor Requirements

  • Minimum Horsepower: 70 hp

  • Hydraulic Flow Rate: 8 gpm

  • Hydraulic Pressure: 1,800 psi

  • Hydraulic Remotes: 2 double-acting sets required

Key Features

  • Cab Controls: Raking width, windrow width, basket lift, and folding/unfolding are all controlled hydraulically from the tractor seat.

  • Rubber-Mounted Tines: Designed to engage the crop while staying off the ground to keep hay clean and reduce maintenance.

  • Caster-Type Wheels: The rake uses large tires (typically 11L-15 for transport) to cushion the ride over uneven terrain.
